0-10V PWM RX Dimmable

MOQ ：500 piece

Lead Time ：12 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C，T/T，Western Union, Money Gram, Credit Card, Paypal

Product details

Supply Ability

Supply Ability：100000 piecesWarranty(Year)：1 Year

Product Specifications

Brand name：依力创

Product Description

BASIC INFO

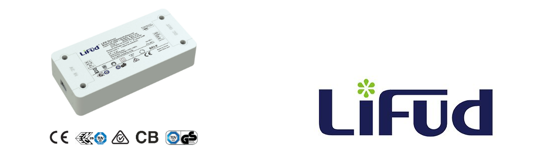

Power	Size: LWH (mm)	Rated Voltage	Output Voltage	Rated Output Current	LM@6000K	SMD LED’S	Dimmable	Driver
Max 24W	2952959	AC100-277V	27-42V	350-550mA	2400lm	2835 Ra>80	0-10V	Lifud
Max 32W	2955959	AC100-277V	27-42V	600-750mA	3200lm	2835 Ra>80	0-10V	Lifud
Max 42W	2955959	AC100-277V	27-42V	800-1050mA	3990lm	2835 Ra>80	0-10V	Lifud
Max 42W	5955959	AC100-277V	27-42V	800-1050mA	3990lm	2835 Ra>80	0-10V	Lifud
Max 42W	11952959	AC100-277V	27-42V	800-1050mA	3990lm	2835 Ra>80	0-10V	Lifud
Max 63W	11952959	AC100-277V	27-42V	1100-1500mA	5670lm	2835 Ra>80	0-10V	Lifud
Max 63W	11955959	AC100-277V	27-42V	1100-1500mA	5670lm	2835 Ra>80	0-10V	Lifud

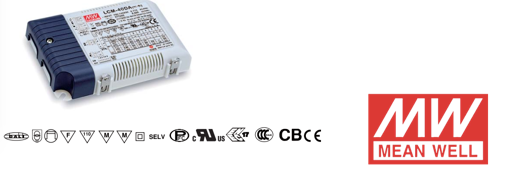

Power	Size: LWH (mm)	Rated Voltage	Output Voltage	Rated Output Current	LM@6000K	SMD LED’S	Dimmable	Driver
Max 25W	2955959	AC180-277V	6-24V	350-500mA	2400lm	2835 Ra>80	0-10V	MW
Max 42W	2955959	AC180-277V	6-24V	900-1050mA	3990lm	2835 Ra>80	0-10V	MW
Max 42W	5955959	AC180-295V	2-40V	900-1050mA	3990lm	2835 Ra>80	0-10V	MW
Max 42W	11952959	AC180-295V	2-40V	900-1050mA	3990lm	2835 Ra>80	0-10V	MW
Max 60W	11952959	AC180-295V	2-40V	1400mA	5400lm	2835 Ra>80	0-10V	MW
Max 60W	11955959	AC180-295V	2-40V	1400mA	5400lm	2835 Ra>80	0-10V	MW

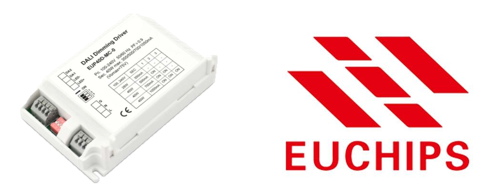

Power	Size: LWH (mm)	Rated Voltage	Output Voltage	Rated Output Current	LM@6000K	SMD LED’S	Dimmable	Driver
Max 30W	2955959	AC100-240V	9-42V	350-700mA	3000lm	2835 Ra>80	0-10V	Euchips
Max 40W	2955959	AC100-240V	3-75V	750-1050mA	3800lm	2835 Ra>80	0-10V	Euchips
Max 40W	5955959	AC100-240V	3-75V	750-1050mA	3800lm	2835 Ra>80	0-10V	Euchips
Max 40W	11952959	AC100-240V	3-75V	750-1050mA	3800lm	2835 Ra>80	0-10V	Euchips
Max 60W	11952959	AC100-240V	5-48V	1050-1400mA	5400lm	2835 Ra>80	0-10V	Euchips
Max 60W	11955959	AC100-240V	5-48V	1050-1400mA	5400lm	2835 Ra>80	0-10V	Euchips
